Tank and Fuel Polisher Installation Project
Recently completed project in Trinidad.
SCOPE: Develop a scope of work, provide equipment recommendations, product specifications, equipment and site drawings in CAD/SketchUp, inclusive of all pipe works.
Work with the client and MEEI to verify equipment specifications and required certification for the Diesel Tank and Diesel Fuel Polisher.
Upon equipment drawing and specification verification and design approvals, procurement, delivery and installation of the following:

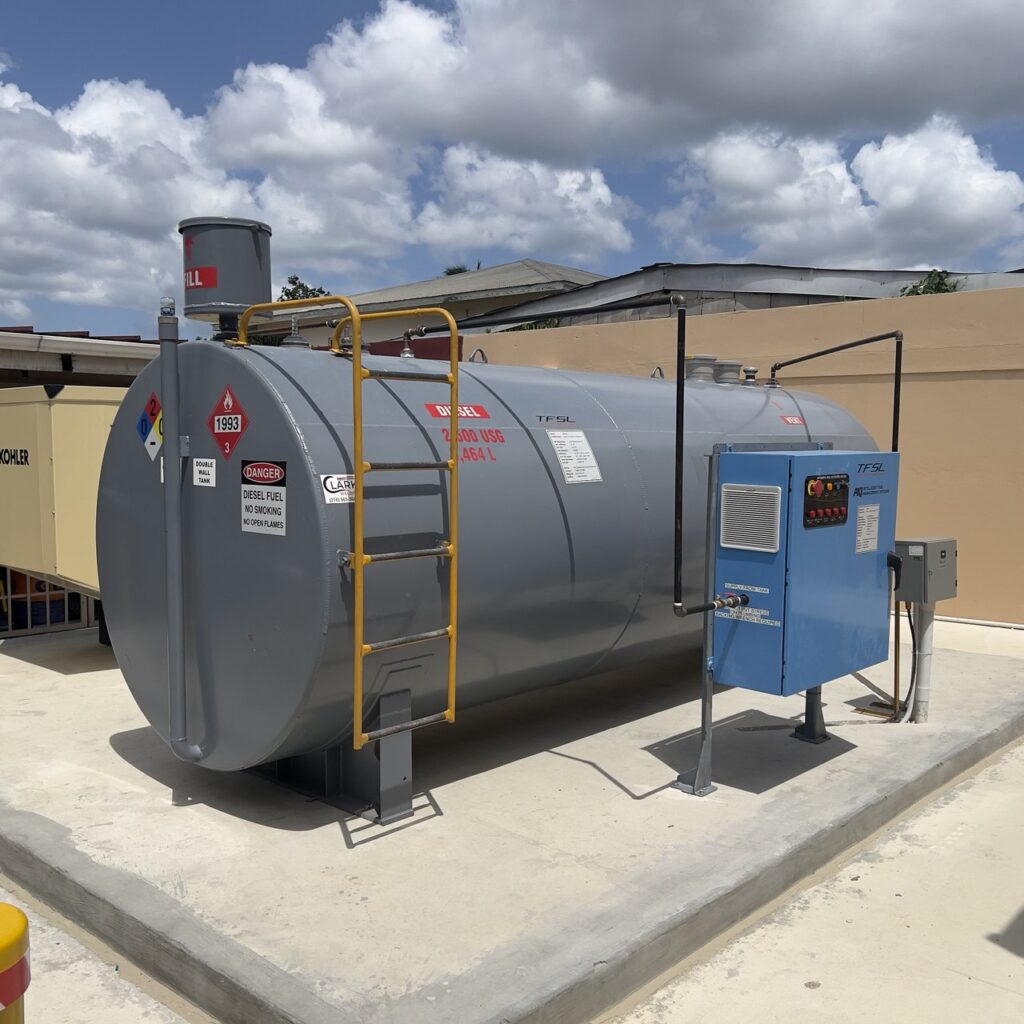

Diesel Tank & Diesel Fuel Polisher Installation
One (1) Diesel Tank:
Tank Volume: 2,500 USG
Fuel Type: Diesel Fuel
Tank Construction: Double walled
Mounts: Seam welded HD saddles.
Certification: UL 142
Coatings: External Marine and Coastal Coatings
Color: Dark Gray (MEEI / Fire Services)
Accessories: Ladder, 2” 4” 6” threaded NPT bungs, (2) 6” open to atmosphere vents (inner and outer tank), leak detector gauge, tank fuel gauge, fuel fill port with built in spill tray, custom base fed threaded NPT bung for diesel fuel feed…
One (1) Diesel Fuel Polisher:
Unit: Stand alone
Mount: Steel stand – powder coated
Power Supply: 110V
Safety: Auto shut off, high vacuum, spill detection
Cabinet: Powder coated steel, with locking door.
Certification: NEMA certified enclosed cabinet
Operation: Keyed for security/safety. Programmable Automatic mode, or manual mode.
Flow rate: 4 GPM/240 GPH (15 LPM/908.5 LPH)
Pump: 1/3 HP Spur Gear Pump
Plumbing: Black Iron
Pipe Works:
Dimensions: ¾”, 1”, 2”
Pipe and Fittings: SCH 40 Black Steel
Connectors: Galvanized threaded
Valves: Stainless – Diesel Fuel Rated
On site threading and installations
Signage:
MEEI and Fire Services compliant: 3M Reflective
Tank Tag: Custom 3M Reflective
Polisher Tag: 3M Reflective
